Slovensky (EUR)Comet P4141 Pt1000 temperature transmitter -100°C to +30°C, 4 to 20 mA output

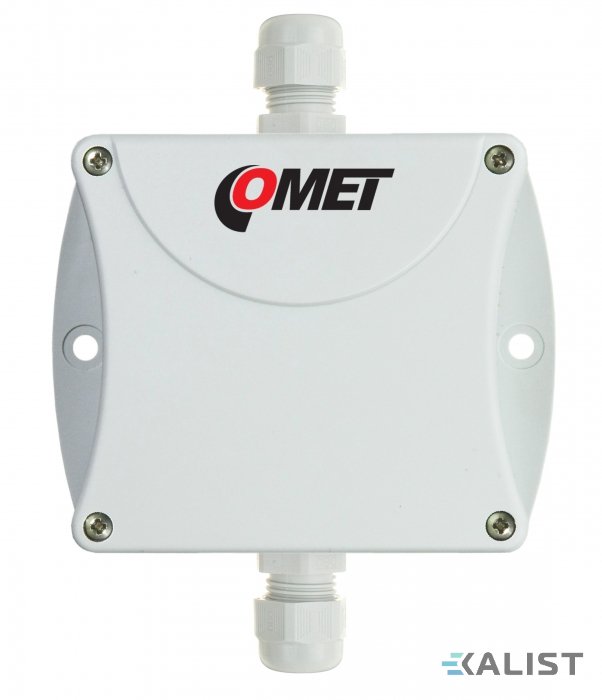

Comet P4141 Pt1000 temperature transmitter -100°C to +30°C, 4 to 20 mA output
The Comet P4141 fixed range transmitter (-100 to +30°C) is designed for temperature measurement using an external Pt1000 probe. Outdoor and indoor use possible. Temperature measurement is based on the conversion of the resistance of the platinum sensor PT1000/3850ppm into a current carrying information about the measured temperature. The device has a linear current output of 4-20mA designed for two-wire connection. More
Product code: COM-P4141
Shipping and Payment
55,81 €
excl. VAT (67,53 € incl. VAT)
The Comet P4141 fixed range transmitter (-100 to +30°C) is designed for temperature measurement using an external Pt1000 probe. Outdoor and indoor use possible. Temperature measurement is based on the conversion of the resistance of the platinum sensor PT1000/3850ppm into a current carrying information about the measured temperature. The device has a linear current output of 4-20mA designed for two-wire connection. More
Product code: COM-P4141
Shipping and Payment
Accessories (15)
Accessories15
Temperature probe Pt1000TG8/0 without connector
Immediately in stock
from
26,67 €
excl. VAT
from 32,27 € incl. VAT
| Ext. temperature range sensors (max) | 200 °C |
|---|---|
| Ext. temperature range sensors (min) | -50 °C |
Universal temperature probe -50 to +200°C in stainless steel 17240 with guaranteed hermeticity (IP67). In the case of a non-movable supply…
Ultra-thin temperature probe Pt1000TG3/0, without connector
Immediately in stock
from
32,83 €
excl. VAT
from 39,72 € incl. VAT
| Temperature range (max) | 200 °C |
|---|---|
| Temperature range (min) | -50 °C |
The probes are designed for contact temperature measurement of gaseous, liquid or solid substances. The very thin housing diameter of 3 mm…
Temperature probe Pt1000TG7/0, without connector
usually in stock
from
40,21 €
excl. VAT
from 48,65 € incl. VAT
| Temperature range (max) | 200 °C |
|---|---|
| Temperature range (min) | -50 °C |
Pt1000TG7 brass temperature probe for surface temperature measurement of materials, fixed with optional cable length. The temperature range…
Temperature probe Pt1000TR125/0, without connector
Immediately in stock
from
91,51 €
excl. VAT
from 110,73 € incl. VAT
| Temperature range (max) | 150 °C |
|---|---|
| Temperature range (min) | -190 °C |
Universal temperature probe -190 to +150°C in stainless steel 17240 with IP67 hermeticity guarantee. Accuracy class B. The probe is firmly…
Temperature probe 2304-220/0, cable 1 m - without connector
In stock
82,07 €
excl. VAT
99,30 € incl. VAT
| Temperature range (max) | 220 °C |
|---|---|
| Temperature range (min) | -50 °C |
Injection probe for contact measurement of solids. The probe consists of a metal housing with a tip, a handle and a cable, without…
Temperature probe 2021-150/0, cable 1 m - without connector
In stock
132,13 €
excl. VAT
159,88 € incl. VAT
| Temperature range (max) | 150 °C |
|---|---|
| Temperature range (min) | -30 °C |
Multi-purpose needle-punch temperature probe. Cable termination, without connector, terminated with wires. Probe is not resistant to…
PTS350-2/0 pipe temperature probe, without connector
In stock
from
41,85 €
excl. VAT
from 50,64 € incl. VAT
| Temperature range (max) | 130 °C |
|---|---|
| Temperature range (min) | -30 °C |
Probe for pipes and flat surfaces. The probe design ensures a fast response to temperature changes. The probe is designed for operation in…
Temperature touch probe 2034-220/0, cable 1 m - without connector
In stock
76,73 €
excl. VAT
92,84 € incl. VAT
| Temperature range (max) | 220 °C |
|---|---|
| Temperature range (min) | -50 °C |
Direct touch probe for measuring solids with flat and smooth surfaces. The probe consists of a metal housing for contact with the surface…
Temperature probe 2061-200/0 without connector
usually in stock
from
94,38 €
excl. VAT
from 114,20 € incl. VAT
| Ext. temperature range sensors (max) | 200 °C |
|---|---|
| Ext. temperature range sensors (min) | -30 °C |
Food probe for measuring solids. The probe consists of a metal casing for contact with the surface to be measured, a handle and a supply…
Temperature probe Pt1000TGL40/0, without connector
usually in stock
from
23,39 €
excl. VAT
from 28,30 € incl. VAT
| Temperature range (max) | 80 °C |
|---|---|
| Temperature range (min) | -30 °C |
An inexpensive universal probe with guaranteed IP67 hermeticity. The cable shield is not connected to the housing. Stainless steel housing…
Temperature probe Pt1000TR160/0 without connector
usually in stock
from
19,29 €
excl. VAT
from 23,34 € incl. VAT
| Ext. temperature range sensors (max) | 80 °C |
|---|---|
| Ext. temperature range sensors (min) | -30 °C |
An inexpensive universal probe from -30 to +80°C with guaranteed IP67 hermeticity. Tightly connected with shielded PVC cable 2 x 0.14mm2.…
Food Temperature Probe PTS380K
In stock
64,01 €
excl. VAT
77,45 € incl. VAT
| Temperature range (max) | 200 °C |
|---|---|
| Temperature range (min) | -30 °C |
Food probe for temperature measurement of liquid and gaseous substances. Probe on cable, without connector, terminated with wires.…
Food grade needle punch probe 2091-250/0, without connector
Immediately in stock
from
103 €
excl. VAT
from 124,63 € incl. VAT
| Temperature range (max) | 250 °C |
|---|---|
| Temperature range (min) | -50 °C |
The food grade needle probe consists of a metal housing terminated with a tip, handle and Teflon lead cable, without connector, terminated…
Special food probe 2071-80/0, without connector
In stock
161,67 €
excl. VAT
195,62 € incl. VAT
| Ext. temperature range sensors (max) | 80 °C |
|---|---|
| Ext. temperature range sensors (min) | -30 °C |
Special food drilling probe. We can supply the temperature probe with a calibration certificate. Just select the calibration in the…
Temperature probe Pt1000TG8Ex/0 for Ex environment (Zone 2 and 22) - without connector
usually in stock
from
51,70 €
excl. VAT
from 62,56 € incl. VAT
| Temperature range (max) | 180 °C |
|---|---|
| Temperature range (min) | -30 °C |
The temperature probe Pt1000TG8Ex/0 made of stainless steel (DIN 1.4571) with guaranteed hermeticity (IP67) and ATEX certification is…
The text was translated by an automatic translator.
Parameters
| Advanced features |
|
|---|---|
| Temperature range (max) | 30 °C |
| Temperature range (min) | -100 °C |
| Temperature resolution | 0,1 °C |
| Temperature measurement accuracy | ± 0,3 °C |
| Connectors for sensors | without connector |
| cover | IP65 |
| Dimensions: | 88,5 x 148 x 39,5 mm |
