Temperature probe Pt1000TR160/M - MiniDin

Temperature probe Pt1000TR160/M - MiniDin
Add to favourites Add to compare list

Temperature probe Pt1000TR160/M - MiniDin

can be calibrated probe IP67
Calibration sheet Accredited IP67 certification

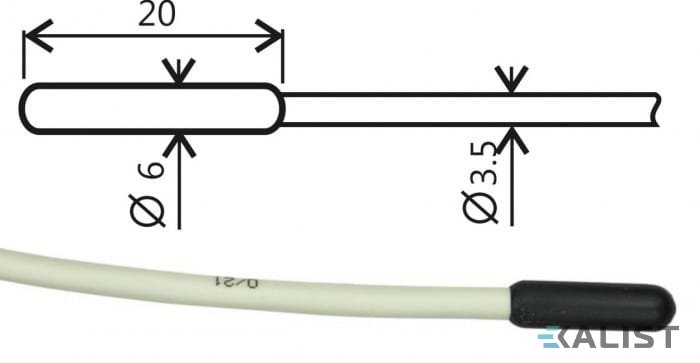

Sensit An inexpensive universal probe from -30 to +80°C with guaranteed IP67 hermeticity. Tightly connected with shielded PVC cable 2 x 0.14mm2. Polyamide housing length 20mm, housing diameter 6mm, cable diameter 3.5mm, with MiniDIN connector. The sensor can also be purchased with calibration, which you can choose according to your needs. Please note that the sensor can only be calibrated with the display unit. This can be purchased from us, if you have your own display unit, you will need to send it to us. More
Product code: COM-SN199-204M Shipping and Payment
from 29,54 € excl. VAT (35,74 € incl. VAT)
Specify product selection
Variant does not exist
No calibration Calibration of the logger for refrigerators +2°C/+4°C/+8°C Logger calibration for medicine storage 0°C/+15°C/+25°C Logger calibration at room temperature +10°C/+20°C/+30°C Logger temperature calibration - own 3 calibration points

Sensit An inexpensive universal probe from -30 to +80°C with guaranteed IP67 hermeticity. Tightly connected with shielded PVC cable 2 x 0.14mm2. Polyamide housing length 20mm, housing diameter 6mm, cable diameter 3.5mm, with MiniDIN connector. The sensor can also be purchased with calibration, which you can choose according to your needs. Please note that the sensor can only be calibrated with the display unit. This can be purchased from us, if you have your own display unit, you will need to send it to us. More
Product code: COM-SN199-204M Shipping and Payment
The text was translated by an automatic translator.
Parameters
Ext. temperature range sensors (max) 80 °C
Ext. temperature range sensors (min) -30 °C
Temperature measurement accuracy ± (0,3 + 0,005 t) ve °C
Probe cable length 1 m, 2 m, 5 m, 10 m, 15 m
Connectors for sensors MiniDin
Shortest recording interval t0,5 <12 s (v proudící vodě > 0,2 m/s) t50 <12s, t90 <32s (v kapalině)
Sensor type Pt1000
cover IP67
Download
tr160ap10_liycy_n.pdf (pdf, 360.5 kB)
manual_tr160-161-162_cz.pdf (pdf, 220.4 kB)
In this section, you will find answers to frequently asked questions regarding use, measurement accuracy, verification, and calibration. If you cannot find the information you are looking for here, please do not hesitate to contact us—we will be happy to provide you with details based on how you use the measuring device. Telefon: +420 771 230 755 E-mail: kalist@kalist.cz
