Temperature probe Pt1000TG7/M - MiniDin :: KALIST AKL s.r.o.

Temperature probe Pt1000TG7/M - MiniDin

Add to favourites Add to compare list

Temperature probe Pt1000TG7/M - MiniDin

can be calibrated touch IP65
Calibration sheet Accredited IP65 certification

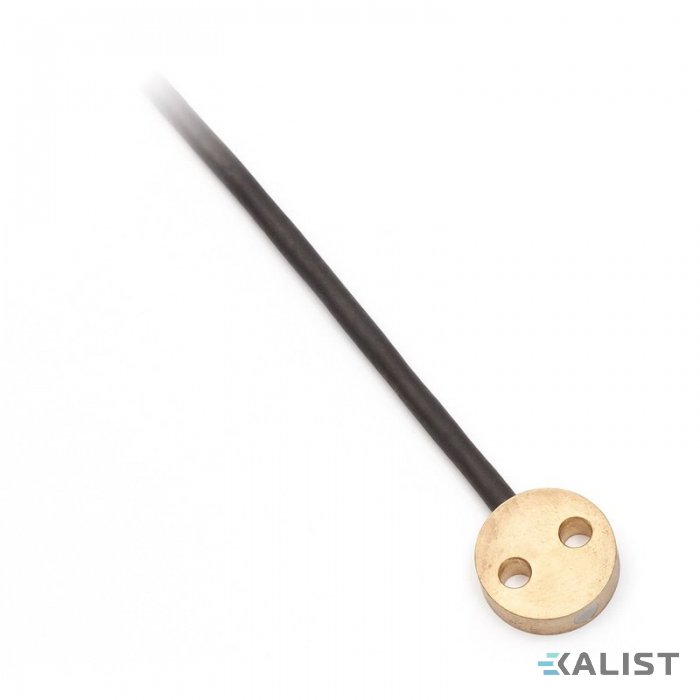

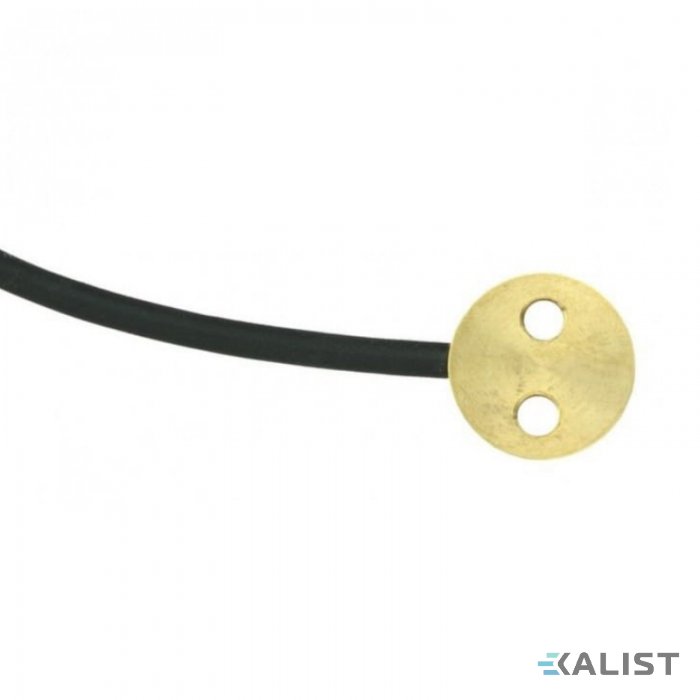

Comet Pt1000TG7 brass probe for surface temperature measurement of materials, fixed with optional cable length. The temperature range of use is -50 to +200 °C and must not be exceeded even for short periods of time. A type with silicone insulation and shielding is used as the supply cable. The design of the probe ensures a fast response to temperature changes. The probe is mounted on the surface with one or two M4 screws or fixed with adhesive tape. The temperature probes are designed for operation in chemically non-aggressive environments, the method of use must be chosen with regard to the temperature and chemical resistance of the housing and the supply cable. If you wish, we can perform a calibration and issue a calibration certificate. However, it is necessary to supply or purchase a display unit. More
Product code: COM-SN164M-167M Shipping and Payment
from 50,47 € excl. VAT (61,07 € incl. VAT)
Specify product selection
Variant does not exist
No calibration Calibration of the logger for refrigerators +2°C/+4°C/+8°C Logger calibration for medicine storage 0°C/+15°C/+25°C Logger calibration at room temperature +10°C/+20°C/+30°C Logger temperature calibration - own 3 calibration points

Comet Pt1000TG7 brass probe for surface temperature measurement of materials, fixed with optional cable length. The temperature range of use is -50 to +200 °C and must not be exceeded even for short periods of time. A type with silicone insulation and shielding is used as the supply cable. The design of the probe ensures a fast response to temperature changes. The probe is mounted on the surface with one or two M4 screws or fixed with adhesive tape. The temperature probes are designed for operation in chemically non-aggressive environments, the method of use must be chosen with regard to the temperature and chemical resistance of the housing and the supply cable. If you wish, we can perform a calibration and issue a calibration certificate. However, it is necessary to supply or purchase a display unit. More
Product code: COM-SN164M-167M Shipping and Payment
The text was translated by an automatic translator.
Parameters
Temperature range (max) 200 °C
Temperature range (min) -50 °C
Temperature measurement accuracy ± (0,15 + 0,002 t) ve °C
Probe cable length 1 m, 2 m, 5 m, 10 m
Connectors for sensors MiniDin
Shortest recording interval t0,5 <10 s (na hladkém povrchu bez pasty)
Sensor type Pt1000
cover IP65
Download
tg7p10_sil_n.pdf (pdf, 353.4 kB)
manual_tg7_cz.pdf (pdf, 154.5 kB)
In this section, you will find answers to frequently asked questions regarding use, measurement accuracy, verification, and calibration. If you cannot find the information you are looking for here, please do not hesitate to contact us—we will be happy to provide you with details based on how you use the measuring device. Telefon: +420 771 230 755 E-mail: kalist@kalist.cz
