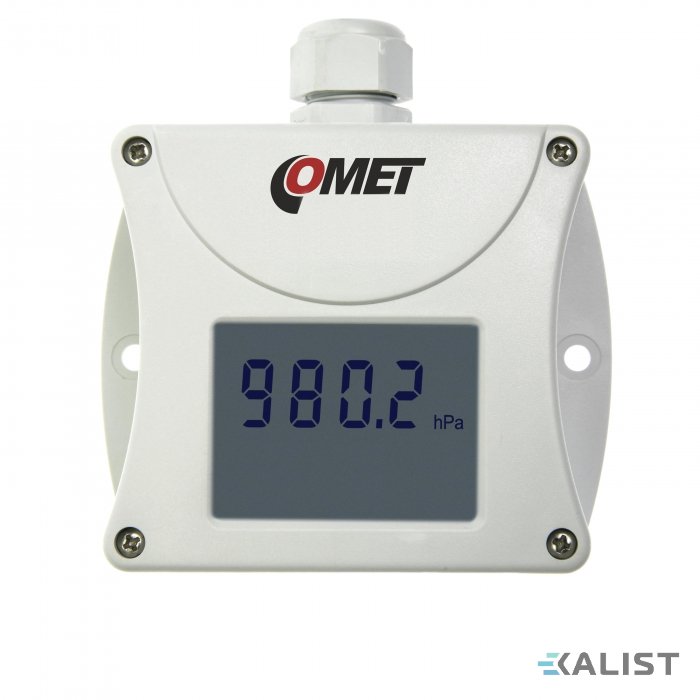

Comet T2214 atmospheric pressure sensor with 0-10V output

Comet T2214 atmospheric pressure sensor with 0-10V output
Add to favourites Add to compare list

Comet T2214 atmospheric pressure sensor with 0-10V output

can be calibrated IP54
Extended Warranty Calibration sheet Authorized sales IP54 certification
Comet The Comet T2214 sensor is designed to measure atmospheric pressure using a built-in sensor. The measured values are displayed on the LCD display. Display and output of pressure is possible in the following units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2. The sensor is set up using the TSensor software and a personal computer connected via the COM-SP003 communication cable (cable not included). The instrument is designed to measure air without aggressive impurities. We can provide you with a calibration certificate for accurate measurements. You can select the calibration in the form next to the product. More
Product code: COM-T2214 Shipping and Payment
222,81 € excl. VAT (269,60 € incl. VAT)
Specify product selection
Upon request - contact dealer for availability
Comet The Comet T2214 sensor is designed to measure atmospheric pressure using a built-in sensor. The measured values are displayed on the LCD display. Display and output of pressure is possible in the following units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2. The sensor is set up using the TSensor software and a personal computer connected via the COM-SP003 communication cable (cable not included). The instrument is designed to measure air without aggressive impurities. We can provide you with a calibration certificate for accurate measurements. You can select the calibration in the form next to the product. More
Product code: COM-T2214 Shipping and Payment

Features and Benefits of the Comet T2214

  • Built-in atmospheric pressure sensor.
  • Can be connected to MS55D, MS6 or Ethernet.
  • Sensor setup using the free downloadable TSensor operating software.
  • Power supply 15-30 Vdc, 24Vac.
  • Voltage output: 0 - 10V.
  • Extended warranty 3 years.

Included:

  • T2214
  • Instructions for use
  • FREE TSensor Setup Software
The text was translated by an automatic translator.
Parameters
Advanced features 0-10 V Atmospheric pressure Display Extended Warranty IP protection
Atmospheric pressure measurement range 600 to 1100 hPa
Resolution of atmospheric pressure measurement 0,1 hPa
cover IP54
Dimensions: 88,5 x 98 x 39,5 mm
Download
i-snc-t2214.pdf (pdf, 479.5 kB)
i-snc-n-tx1-2-xx.pdf (pdf, 1019.8 kB)
a-snc-txxxx.pdf (pdf, 103.9 kB)
cz_comet_analog_sensors.pdf (pdf, 2 MB)
conversions.exe (exe, 694.5 kB)
