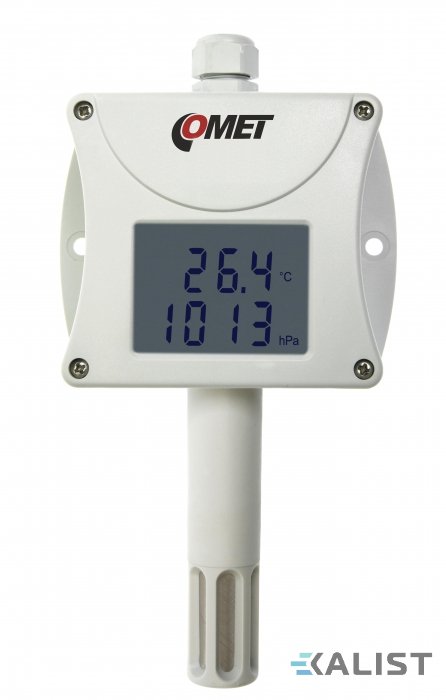

Comet T7310 temperature, humidity and atmospheric pressure sensor with RS232 output

Comet T7310 temperature, humidity and atmospheric pressure sensor with RS232 output
Add to favourites Add to compare list

Comet T7310 temperature, humidity and atmospheric pressure sensor with RS232 output

Action -10 % can be calibrated 3 years warranty IP54
Extended Warranty Calibration sheet Accredited Authorized sales IP54 certification
Comet The Comet T7310 sensor is designed to measure temperature, relative humidity and atmospheric pressure using a built-in sensor. It can also convert the measured temperature and humidity to dew point temperature, absolute humidity, specific humidity, mixing ratio or specific enthalpy. Pressure display and output is possible in the following units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2. The measured values including the calculated quantity are displayed on the LCD. The instrument is designed for measuring air without aggressive impurities. The sensor communicates via RS232 bus, supports Modbus RTU communication protocols, protocol based on Advantech-ADAM standard, ARION communication protocol and communication with HWg-Poseidon units. The sensor is configured by the manufacturer to the Modbus RTU communication protocol. The sensor is set up using the TSensor software. We can issue a calibration sheet for accurate measurements. You can select the calibration in the form next to the product. More
Product code: COM-T7310 Shipping and Payment
Standard price 291,37 €excl. VAT. Save 10 %(29,14 € excl. VAT)
262,23 € excl. VAT (317,30 € incl. VAT)
Specify product selection
No calibration Calibration of the logger for refrigerators +2°C/+4°C/+8°C Logger calibration for medicine storage 0°C/+15°C/+25°C Logger calibration at room temperature +10°C/+20°C/+30°C Logger humidity calibration 50%/60%/70% Temperature and humidity logger calibration +10°C/+20°C/+30°C, 50%/60%/70% Temperature and humidity calibration of the logger - own calibration points Logger temperature calibration - own 3 calibration points Logger humidity calibration - own 3 calibration points
Immediately in stock - up to 10 pieces
Comet The Comet T7310 sensor is designed to measure temperature, relative humidity and atmospheric pressure using a built-in sensor. It can also convert the measured temperature and humidity to dew point temperature, absolute humidity, specific humidity, mixing ratio or specific enthalpy. Pressure display and output is possible in the following units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2. The measured values including the calculated quantity are displayed on the LCD. The instrument is designed for measuring air without aggressive impurities. The sensor communicates via RS232 bus, supports Modbus RTU communication protocols, protocol based on Advantech-ADAM standard, ARION communication protocol and communication with HWg-Poseidon units. The sensor is configured by the manufacturer to the Modbus RTU communication protocol. The sensor is set up using the TSensor software. We can issue a calibration sheet for accurate measurements. You can select the calibration in the form next to the product. More
Product code: COM-T7310 Shipping and Payment

Features and Benefits of the Comet T7310

  • Built-in temperature, humidity and atmospheric pressuresensor.
  • The sensor can calculate quantities such as dew point, absolute humidity, specific humidity, mixing ratio and specific enthalpy.
  • The sensor can be set up using the TSensor operating software, which is free to download.
  • Communication protocols ModBus RTU, ARION and Advantech ADAM compatible protocol
  • Power supply 9-30 Vdc.
  • Extended warranty 3 years.

Included:

  • T7310
  • Instructions for use
  • FREE TSensor Setup Software
The text was translated by an automatic translator.
Parameters
Advanced features Atmospheric pressure Comet database software Database viewer Display Dew point Extended Warranty IP protection Relative humidity RS 232 Temperature
Temperature range (max) 80 °C
Temperature range (min) -30 °C
Temperature resolution 0,1 °C
Temperature measurement accuracy ± 0,4 °C
Humidity measurement range 0 to100%
Humidity measurement accuracy ± 2.5% RH from 5 to 95% at 23°C
Atmospheric pressure measurement range 600 to 1100 hPa
Resolution of atmospheric pressure measurement 0,1 hPa
Connectivity RS 232
Communication protocols ModBus RTU, Advantech ADAM, ARION
cover IP40, IP54, IP54 elektronika / IP40 senzory
Dimensions: 88,5 x 170 x 39,5 mm / délka stonku 75 mm
Download
Popis komunikačních protokolů snímačů řady Tx3xx a Tx4xx s digitálním komunikačním rozhraním RS232 a RS485.pdf (pdf, 513.4 kB)
i-snc-t33_4_11-t73_4_10.pdf (pdf, 1.1 MB)
i-snc-n-tx3xx.pdf (pdf, 997.6 kB)
a-snc-txxxx.pdf (pdf, 103.9 kB)
cz_comet_digital_sensors.pdf (pdf, 7.6 MB)
dbviewer-3-12-0-0_dbapi-19-0.exe (exe, 22.1 MB)
tsensor-3-3-9-0.exe (exe, 2.7 MB)
sensorreader-2-0-6-0.exe (exe, 2.8 MB)
sensorrs485232utility-1-0-0-15.exe (exe, 3.4 MB)
conversions.exe (exe, 694.5 kB)
