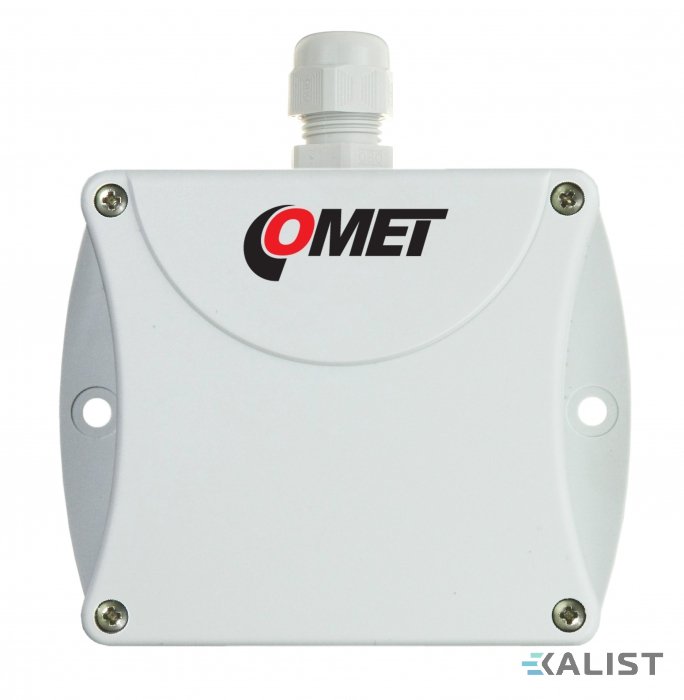

Comet P0212 air duct temperature sensor with 0-10V output

Add to favourites Add to compare list

Comet P0212 air duct temperature sensor with 0-10V output

can be calibrated 3 years warranty IP65
Extended Warranty Calibration sheet Accredited Authorized sales IP65 certification

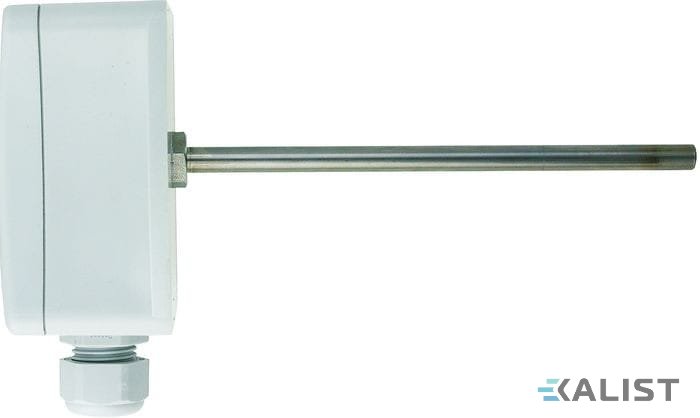

Comet The Comet P0212 sensor is designed to measure the temperature in the air duct using a built-in sensor, the length of the stainless steel stem is 120mm. The device is designed for measuring air without aggressive impurities. The sensor is set up using the TSensor program and a personal computer connected via the COM-SP003 communication cable (cable not included). The voltage and temperature output range can be changed, units °C/°F. If you wish, we can perform the calibration and issue a calibration certificate. However, a display unit must be supplied or purchased. More
Product code: COM-P0212 Shipping and Payment
113,66 € excl. VAT (137,53 € incl. VAT)
Specify product selection

Upon request - contact dealer for availability
Comet The Comet P0212 sensor is designed to measure the temperature in the air duct using a built-in sensor, the length of the stainless steel stem is 120mm. The device is designed for measuring air without aggressive impurities. The sensor is set up using the TSensor program and a personal computer connected via the COM-SP003 communication cable (cable not included). The voltage and temperature output range can be changed, units °C/°F. If you wish, we can perform the calibration and issue a calibration certificate. However, a display unit must be supplied or purchased. More
Product code: COM-P0212 Shipping and Payment

Features and Benefits of Comet P0212

  • Built-in temperature sensor.
  • Can be connected to MS55D, MS6 or Ethernet.
  • Sensor setup using the free downloadable TSensor operating software.
  • Power supply 15-30 Vdc, 24Vac.
  • Voltage output: 0 - 10V.
  • Extended warranty 3 years.

Included:

  • P0212
  • Instructions for use
  • FREE TSensor Setup Software
The text was translated by an automatic translator.
Parameters
Advanced features 0-10 V Extended Warranty IP protection Temperature
Temperature range (max) 80 °C
Temperature range (min) -30 °C
Temperature resolution 0,1 °C
Temperature measurement accuracy ± 0,4 °C
cover IP65
Dimensions: 88,5 x 94 x 160 mm / délka stonku 120 mm
Download
i-snc-p0212.pdf (pdf, 493.9 kB)
a-snc-txxxx.pdf (pdf, 103.9 kB)
cz_comet_analog_sensors.pdf (pdf, 2 MB)
conversions.exe (exe, 694.5 kB)
