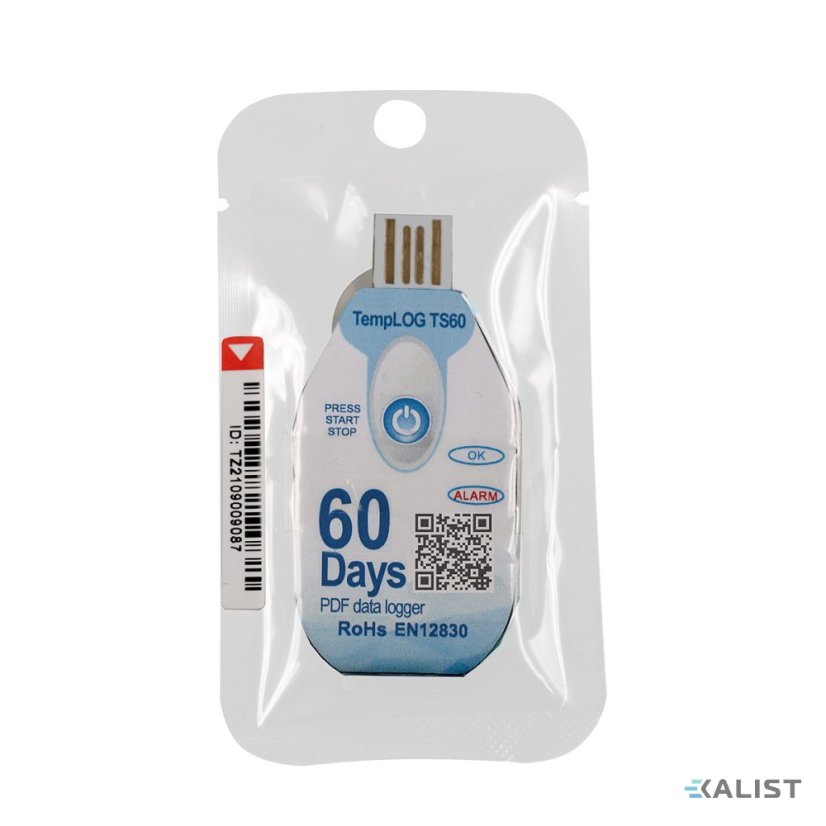

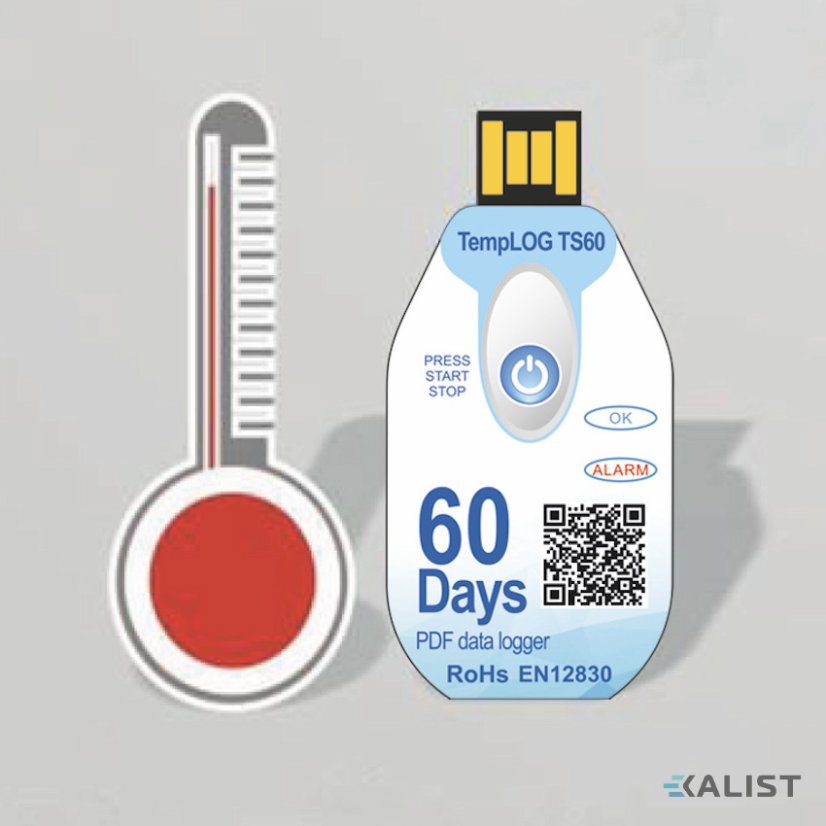

The TFA Dostmann TempLOG TS60 is a single-use USB temperature data logger designed for monitoring temperature during transport and short-term storage. Thanks to its pre-configured setup, no programming or software installation is required. Logging starts with a single button press, after which the device automatically records temperature at fixed intervals for up to 60 days. Once the shipment has been completed, simply connect the logger directly to a computer via USB to automatically generate a PDF report containing the complete temperature history.
The device is designed as a disposable solution for documenting transport conditions. Its integrated memory stores up to 10,000 readings, while two LED indicators provide clear status information throughout the logging process. The IP67-rated protective pouch protects the data logger against dust ingress and temporary immersion in water during transport. Measurement accuracy is up to ±0.5 °C within the main operating temperature range.
Applications
- temperature monitoring during food and beverage transportation
- cold chain monitoring for pharmaceuticals, vaccines and medical supplies
- transport of biological samples
- logistics of temperature-sensitive cosmetic products
- monitoring the transport of chemicals, paints and coatings
- verification of storage conditions during distribution
- documentation of transport temperatures for import and export shipments
- internal quality control in laboratories and manufacturing facilities
Technical Specifications
- Device type: Single-use temperature data logger
- Measured parameter: Temperature
- Measurement range: -30 to +60 °C
- Measurement accuracy: Up to ±0.5 °C (depending on the measurement range)
- Resolution: 0.1 °C
- Memory capacity: 10,000 readings
- Logging interval: 10 minutes (fixed)
- Maximum logging duration: 60 days
- Interface: USB 2.0
- Data export: Automatically generated PDF report
- Status indication: OK / Alarm LEDs
- Protection rating: IP67 with protective pouch
- Housing material: Plastic
- Dimensions: Approx. 57 × 7 × 103 mm
- Weight: Approx. 14 g
Package Contents
- TFA Dostmann TempLOG TS60 single-use temperature data logger
- IP67 protective pouch
- User manual
Power Supply and Operation
- Integrated CR2032 lithium coin cell battery
- Battery included
- Operating time of up to 60 days
- No battery replacement or recharging required
- Intended for single-use only after completion of the logging period
Display and Operation

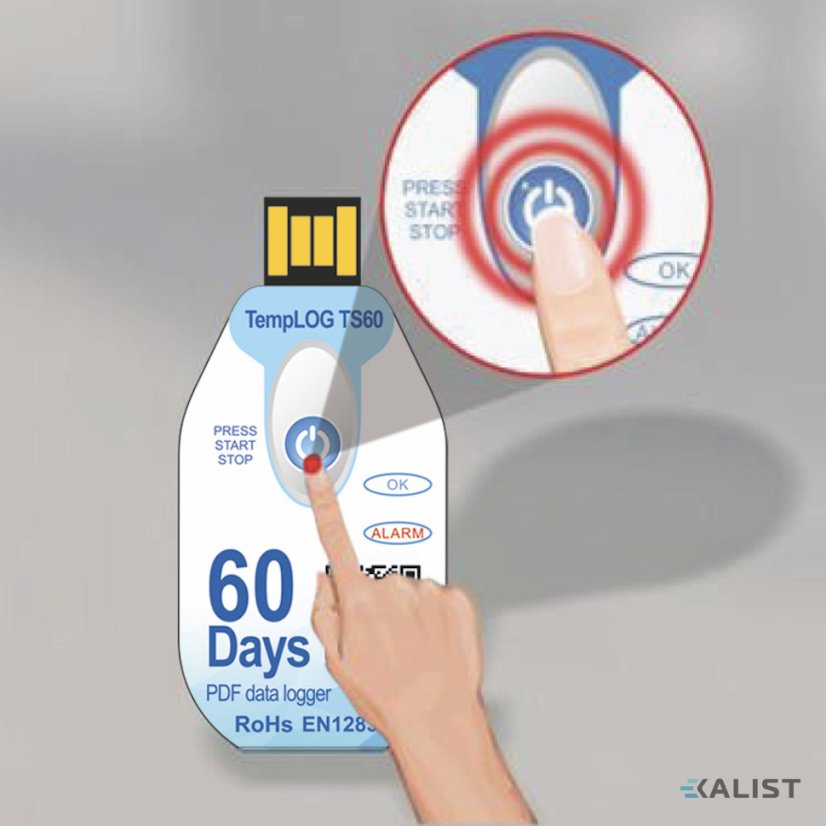

The TempLOG TS60 does not feature a conventional display. Logging status is indicated by two LED indicators (OK and Alarm), allowing quick verification of the measurement process. Logging is started using a single button, while recorded data can be accessed by connecting the device directly to a computer via USB.
Key Features
- single-use temperature data logger for transport monitoring
- automatic PDF report generation without software installation
- memory capacity for up to 10,000 readings
- operating time of up to 60 days on the integrated battery
- simple one-button operation
- direct USB 2.0 connection to a computer
- IP67-rated protective pouch
- LED indication of logging status and alarm conditions
